SmartBase Plus (BIO-SPA6)

Optimal Solution for Slopes and Lawns

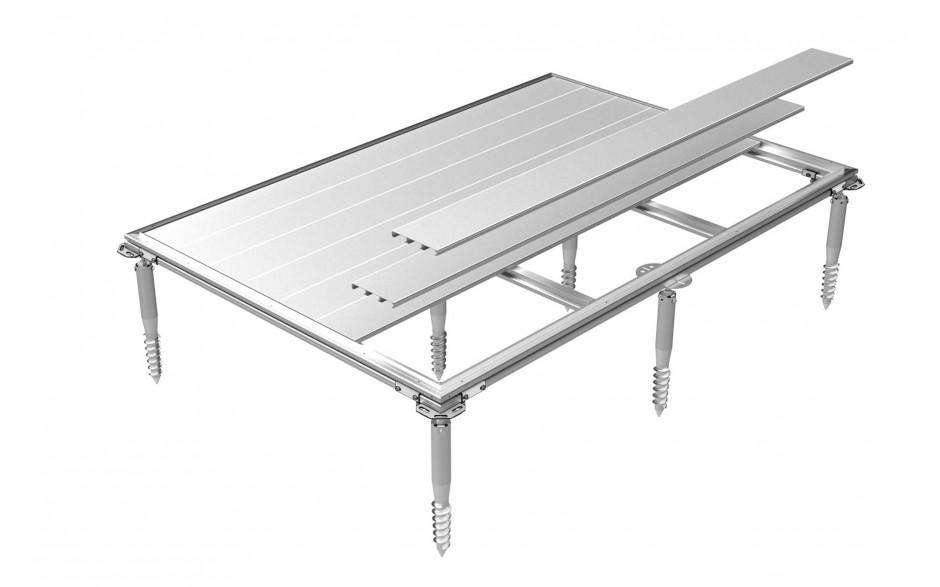

Unlike the SmartBase foundation, the patented SmartBasePLUS system includes ground screws instead of adjustable feet. These are screwed directly into the ground and can compensate slopes of up to 15 cm. For this, the soil should be compact and free of large stones and roots.

Features

• Minimal excavation
• Gravel base is not necessary
• Compensation of unevenness through ground screws
• Easy to remove if necessary
• Precisely fits to all Biohort garden sheds, the Equipment Locker and MiniGarage
• Storm proof
• Load bearing capacity max. 200 kg/m2

Standard Equipment

• Aluminium floor panels with grooved surface
• Specially designed foundation frame
• Galvanised ground screws
• Multi-adjustable mounting plates
• Including manual screw-in driver
• Integrated water barrier to protect against water ingress

Floor frame and floor plates are no longer necessary.

Installation Guide

• Assembly Time: 2 - 4 hours for two (depending on size)
• Tools*: hammer drill, drill bit Ø 40 x 600 mm, spirit level, drill, open-end spanner SW13 and SW24, shovel.
